Liferay React Portlet

Introduction

ReactJS is an open-source JavaScript library for building user interfaces. It's maintained by Facebook and a community of individual developers and companies. It allows us to create reusable UI components. ReactJS can be used as a base in the development of single-page or mobile applications. Nowadays, ReactJS become the most popular JavaScript framework to create web apps which is integrate with Liferay to create react-portlet.

This blog post describes how to create an npm-react-portlet which can be deployed as a Liferay OSGi module.

Prerequisites

• Java
• Liferay Portal 7/7.x
• React

Environment Requirement

• JDK 8
• Eclipse
• Liferay Portal
• Blade CLI (read more)
• Node.Js (read more)

Assuming that you have already created a Liferay-workspace project in eclipse IDE.

Create React-Portlet in Liferay

In Liferay Development, “npm-react-portlet” is a template for creating react module project. There are two ways to create react portlet :

1) Using Blade CLI:

You can use below blade command to create react portlet :

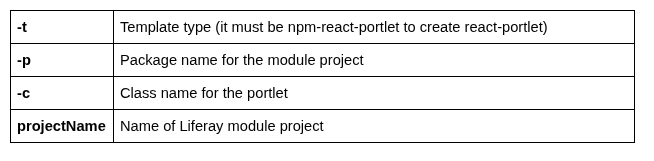

1blade create -t npm-react-portlet [-p packageName] [-c className] projectName

For example,

• Navigate to the directory of your Liferay-workspace-project
• Then fire the below command :

1blade create -t npm-react-portlet -p com.ignek.npm.react -c IgnekNpmReact ignek-npm-react-portlet

The necessary file structure for react-portlet will automatically be created.

2) Using Eclipse IDE:

You can follow the below steps in Eclipse to create npm-react-portlet :

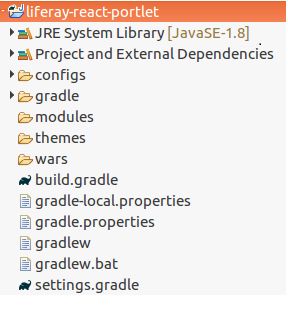

• Import or create the Liferay-workspace-project in which you want to create react-portlet (Liferay-workspace look like below image)

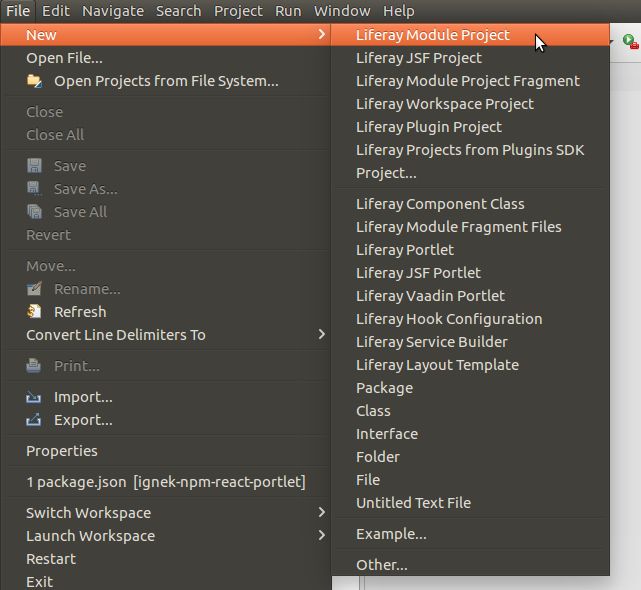

• Go to File → New → Liferay Module Project.

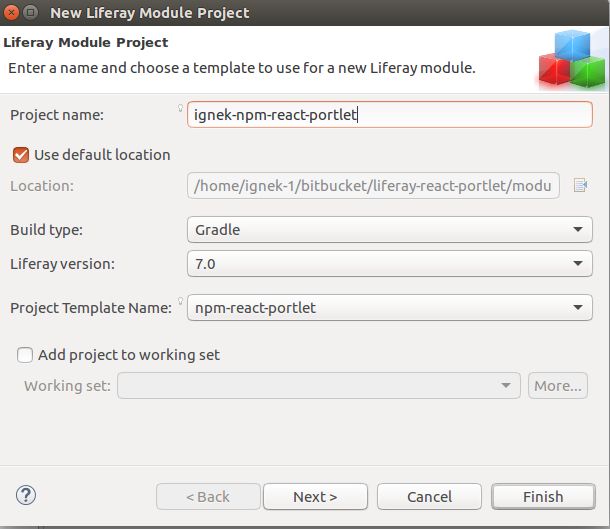

• Enter the Project name
• Select Project template name as npm-react-portlet

• Click on Next button.

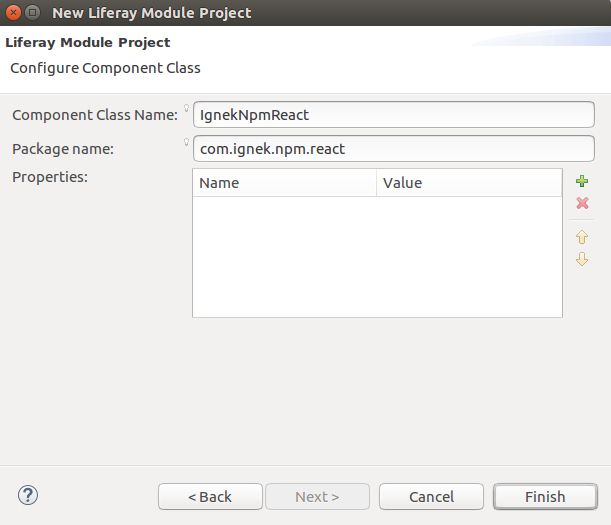

• Enter the Component Class Name & Package name

• Click on Finish button

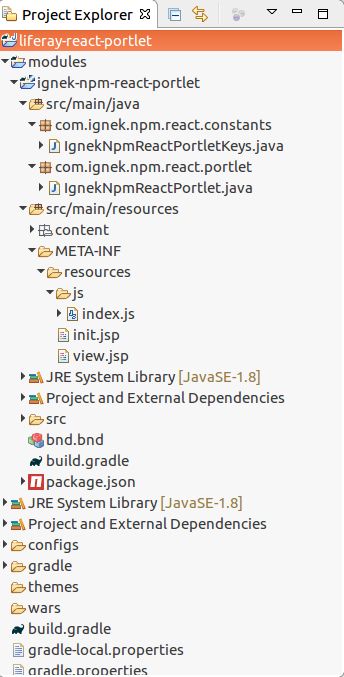

The necessary file structure for react-portlet will automatically be created.

Add the dependency in react-portlet

By default, the dependencies for React and Liferay module being added in package.json when you have created the react-portlet. If you want to use other react component you must have to register the component in project dependency. You can add the dependency in the react/react-portlet by below step:

1npm install [--save] [packagename]

Note: This command is fired where the package.json file is located.

For example,

• Navigate to the directory of your Liferay-module-project.
• Then fire the below command to add react-router-dom:

1npm install --save react-router-dom
