How to write ADT with structure and template in Liferay

Introduction

The application display template (ADT) allows portal administrators to override the default display templates for portlets. For example, we want to show a list of the asset ( web contents, blogs ) in the asset publisher portlet in different designs ( Vertical list ) than OOTB design of LIferay. Application display template(ADT) is a great way of changing the Portlet display dynamically without changing code in Portlet JSP pages. In Liferay 7.2, application display template known as Widget Template.

Follow the below steps to create Web Content with structure and template

1. Create Structure

Go to Liferay admin panel

Go to Sites → Select desired site → Content → Web-content → Structures

Click on “+” button

Enter the name of the structure

Add fields by dragging items from left to right

And click on the “Save” button to save the structure

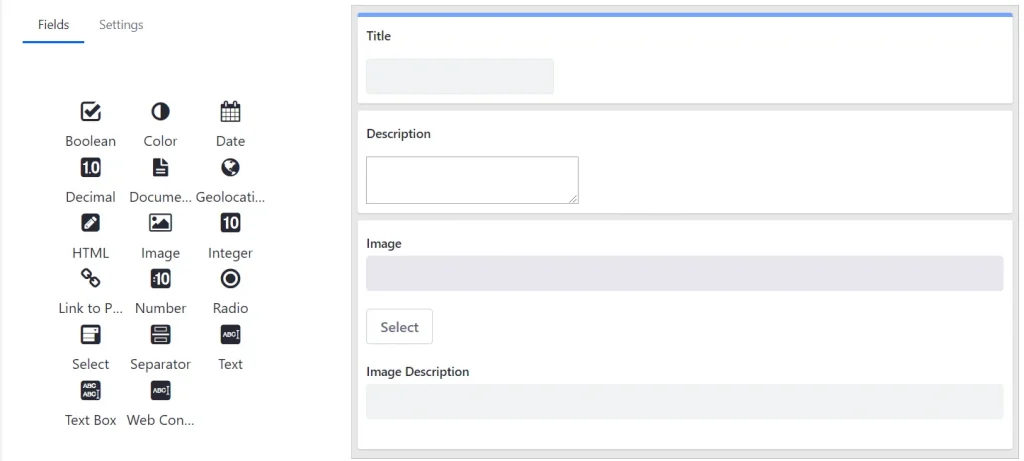

Here, We adding Text, HTML and Image fields for demonstrating the ADT & Structure (You can change field name as per your requirement). Please refer below image.

2. Create Template

Go to Liferay admin panel

Got to Sites → Select desired site → Content → Web-content → Templates

Click on “+” button

Enter the name of the template

Here, We creating a basic template as shown below

1Title : ${Title.getData()} <br />
2Description : ${Description.getData()} <br />
3<#if Image.getData()?? && Image.getData() != "">
4    <img decoding="async" alt="${Image.getAttribute(" src="${Image.getData()}" title="|">
5</#if>

3. Create Web Content

Go to Liferay admin panel

Got to Sites → Select desired site → Content → Web-content

Click on “+” button

Select the structure

Give the name of web content

Fill the fields with appropriate details

Click on Publish

Go to the desired page

Drop the Web Content Display portlet

Click on Select Web Content to make it visible

Select the web content which you want to display

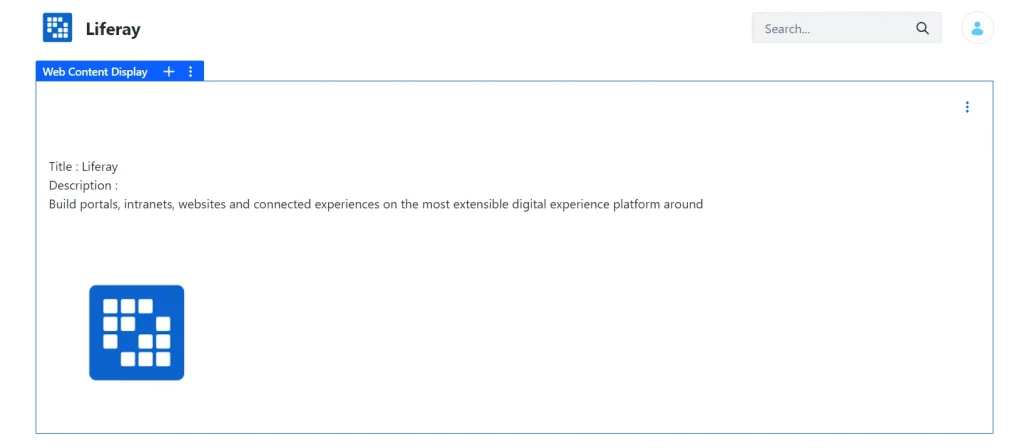

We have created web content with the structure and template. If you drop this web content in page, it will look like below image.

We can add any number of web contents using this structure and template. We can configure asset publisher to render web content using this structure. Now in order to make look and feel better we can write application display template to render webcontents list.

Follow the below steps to create the Application Display Template

Create Application Display Template using asset publisher

Go to Liferay admin panel

Got to Sites → Select desired site → Configuration → Application Display Templates

Click on “ADD” button

Select Asset Publisher Template

Add the name of the asset publisher

Add below code in ADT

1<#if entries?has_content>
2    <div class="row">
3        <#list entries as curEntry>
4            <div class="col-md-3 border border-primary" >
5                <#assign
6                    assetRenderer = curEntry.getAssetRenderer()
7                    journalArticle = assetRenderer.getAssetObject()
8                 />
9                <@liferay_journal["journal-article"]
10                    articleId=journalArticle.getArticleId()
11                    ddmTemplateKey=journalArticle.getDDMTemplateKey()
12                    groupId=journalArticle.getGroupId()
13                />
14            </div>
15        </#list>
16    </div>
17</#if>

• Click on the Save button
• Go to the desired page
• Drop the Asset Publisher portlet, configure it with above ADT and structure

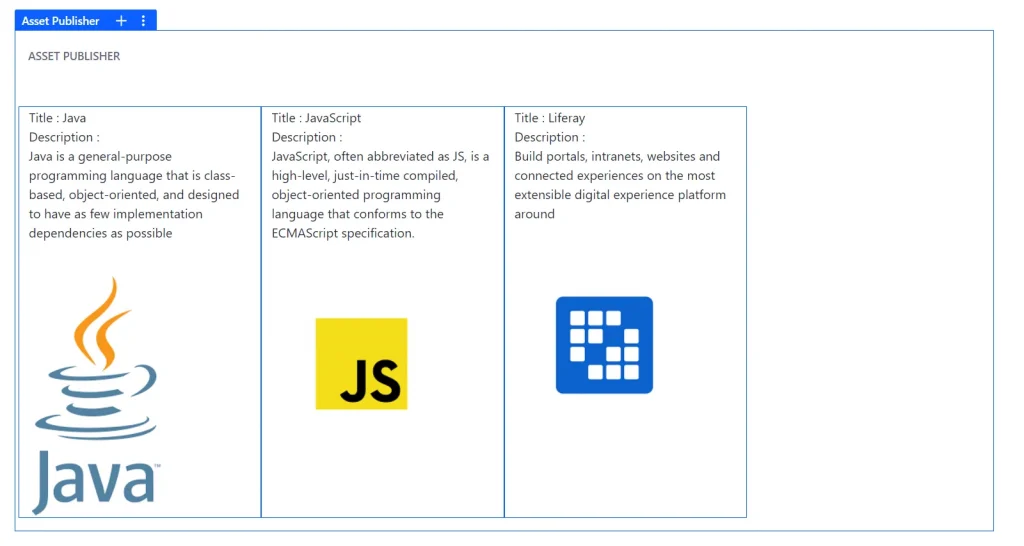

Now, you can see your web content as shown below
